UHF RFID System on Chip SiP - EOL

UHF 865-868 / 902-928 MHz UHF SiP RS2000

Indy RS2000 is a completely integrated UHF reader SiP (system-in-package) with four antenna ports. It can be easily added to an embedded system, requiring only connections to a power source, digital communication with a host, and an antenna. The package design allows it to be attached to a PCB using standard surface mount technology (SMT), with no need for additional connectors or mounting hardware. The Indy RS2000 is the easiest way to embed UHF RFID reader capability.

Typische Anwendungen

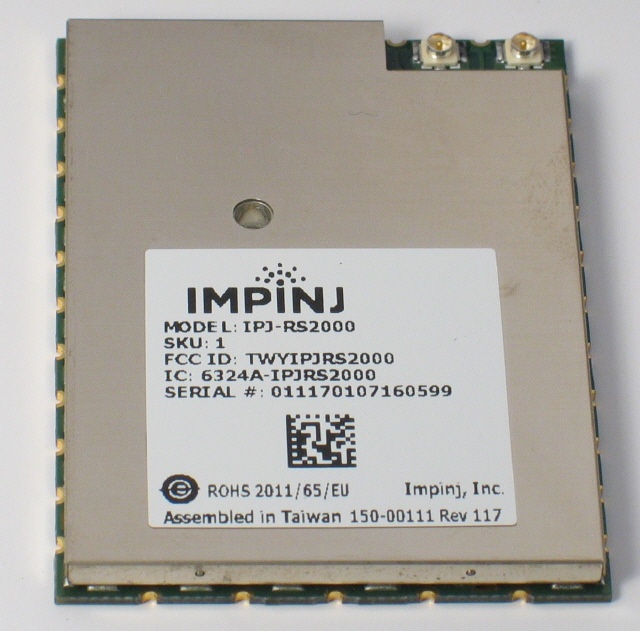

RDU-RS2000 Impinj RFID Modul
RDU-RS2000 Impinj RFID Modul
  • Embedded Systeme
  • Etikettiermaschinen
  • Sondermaschinen
  • Automatisierungstechnik
  • Sensorik
  • Terminals

Eigenschaften und Vorteile des SiP RS2000

weiter Frequenzbereich 862-955 MHz Weltweiter Einsatz möglich (EU ETSI, FCC USA) China, Hong Kong, Japan, Korea und weitere ....
einfaches Kommunikationsprotokoll einfache Integration in unterschiedlichste Embedded Systeme
Standard Schnittstellen einfache Integration in neue sowie bestehende Geräte wie Tablett, Drucker, PDA und Terminals
Geringste Baugröße Integration auch bei geringstem Platzangebot, nur 52 x 38 x 4 mm
Kurze Design-In Zeit Entwicklungssystem inkl. PCB Board verfügbar, Impinj Support Forum & Community

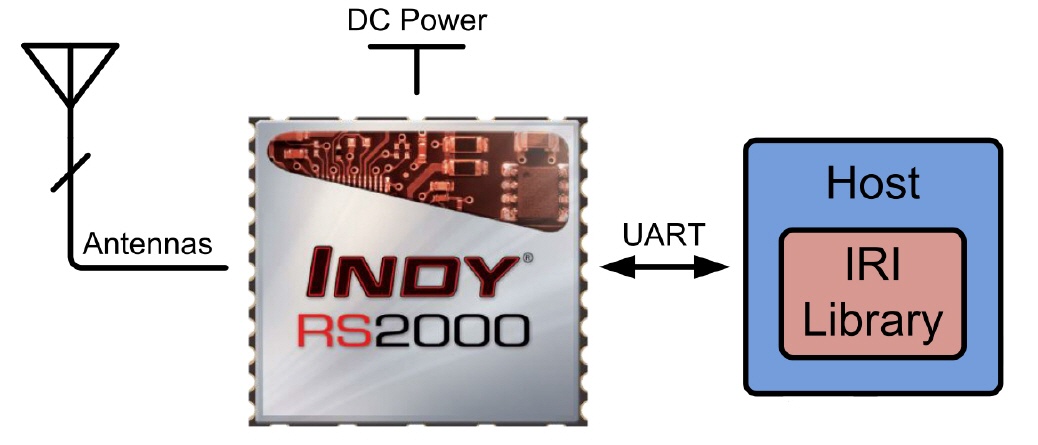

Impinj RS2000 System in Package Blockschaltbild
Impinj RS2000 System in Package Blockschaltbild

Spezifikationen: RS2000

Frequenz: 865-868 MHz ETSI / 902-928 MHz FCC
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-63 (formerly 18000-6C)
Supports dense reader mode (DRM)
Standards: EN 302 208
FCC Part 15.247
Ausgangsleistung: +10 bis +31.5 dBm wählbar (+30 dBm Japan)
Empfindlichkeit: -74 dBm
Antenne: extern monostatic 50 Ohm Port
Antennenanschluss: 2 x UFL, 2 x Pin
Lesereichweite: 12m mit 8,5 dB Patch Antenne ANTU-PATCH63 zirkular, ETSI Modus, und Monza R6 ISO18000-6C Transponder
Host Interface: UART TTL
Host Datenrate: Seriell TTL (N,8,1) = 9600 to 115200 baud rate
Firmware: FLASH Speicher für Firmware Update
Ein-/ Ausgänge: vier digitale IO
Betriebstemperatur: -20 bis +60 Grad C
Feuchtigkeit: 10-90%, nicht kondensierend
Baugröße (LxBxH): 52 x 38 x 4 mm
Gehäusetyp: 35 pin SMT Surface Mount Gehäuse
Gewicht: TBD
Spannungsversorgung: 3,2 bis 5,25V DC
Stromaufnahme: TBD

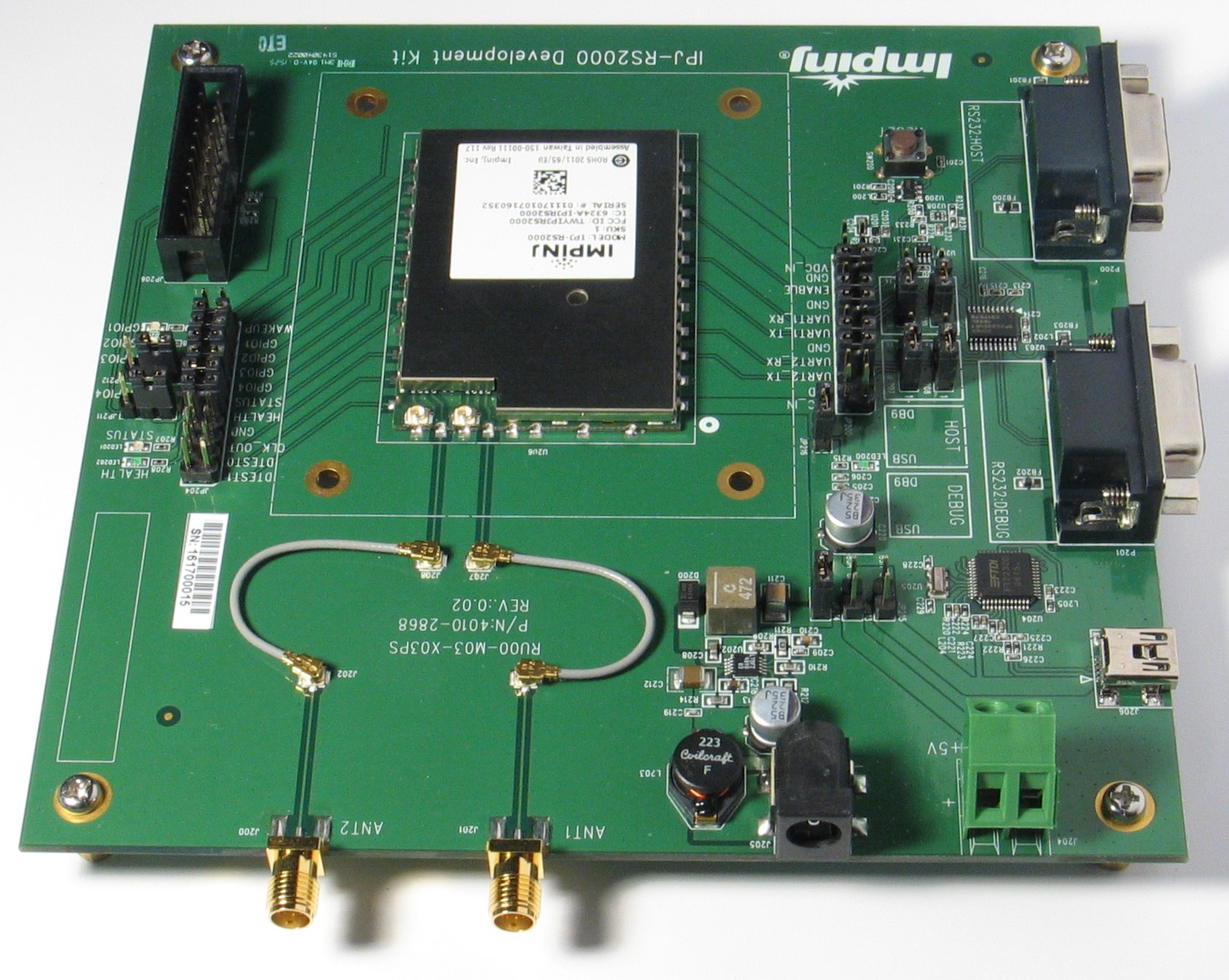

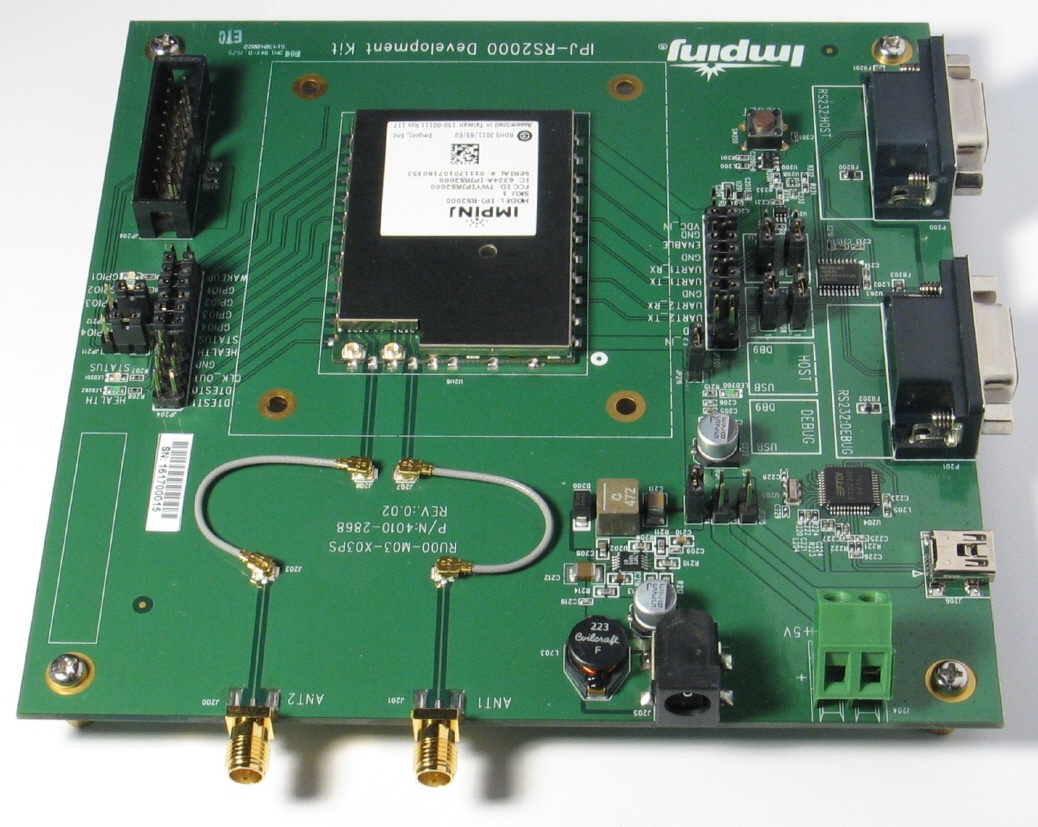

Impinj RS2000 Entwicklerboard
Impinj RS2000 Entwicklerboard

Bestellinformation RS2000

Impinj RS2000 SiP System in Package für Europa ETSI IPJ-RS2000-1: RDU-RS2000-1
Impinj RS2000 SiP System in Package ETSI IPJ-RS2000-2 für Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa-Rica, Dominican-Republic, Hong-Kong, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, New-Zealand, Panama, Peru, Philippines, Russian-Federation, Singapore, South-Africa, Taiwan, Thailand, United-States, Uruguay, Venezuela, Vietnam RDU-RS2000-2
Impinj RS2000 SiP System in Package für Europa ETSI Development Kit: RDU-RS2000-1-DEV
