2-Port UHF RAIN RFID Reader Sargas

RFID RAIN Reader JADAK ThingMagic Sargas
RFID RAIN Reader JADAK ThingMagic Sargas

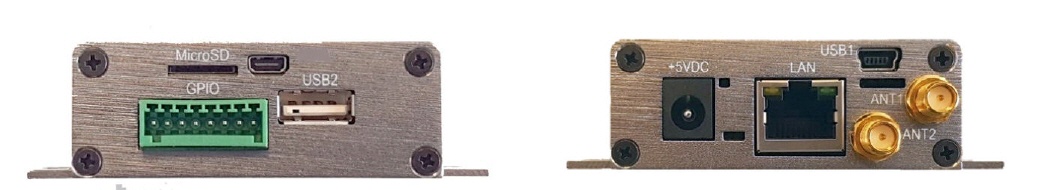

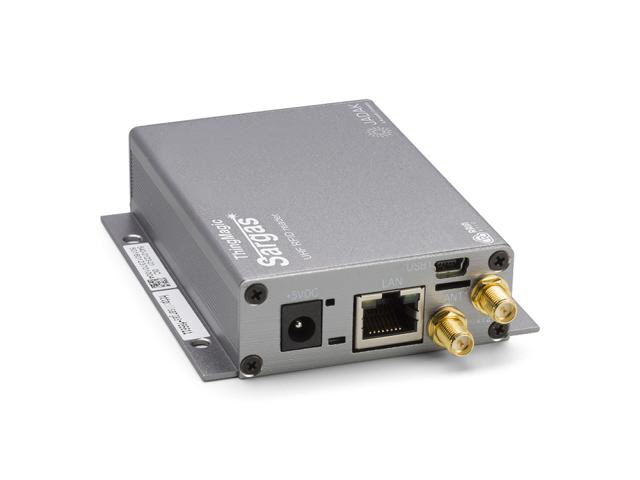

ThingMagic Sargas is a small, high performance, multiprotocol, networked 2-port UHF RAIN RFID reader in a low profile enclosure with both read and write capability.
With an ARM onboard processor, memory and removable flash storage, it has features designed for enterprise applications and easy system integration.

Powerful Processor

ThingMagic Sargas is outfitted with a powerful ARM Cortex processor running Linux and generous amounts of DDR and FLASH memory, allowing complex on-reader programs to be loaded and written with the aid of ThingMagic’s MercuryAPI. ThingMagic Sargas is also RAINstream enabled: with an optional, licensed, prepackaged on-reader program, it simplifies data integration, and enables the integration of the reader into existing systems, formatting tag data to multiple hosts over common communications channels.

ThingMagic Sargas is capable of reading more than 750 tags per second at distances over 9 meters when configured with appropriate antennas.
ThingMagic Sargas is certified to meet several multi-national regulatory standards, including Americas (FCC/IC), European Union (ETSI) and India (TRAI).
Multipurpose client and host USB Ports, an SD card slot, HDMI video output port, and high voltage, opto-isolated general purpose I/O ports allow Sargas to support a wide variety of applications. ThingMagic Sargas supports EPCglobal Gen 2 (ISO 18000-6C) with Anti-Collision and DRM.

Typical Applications ThingMagic Sargas

  • In-Vehicle, including Emergency Medical Services
  • Mobile Asset Management
  • Process Control
  • Machine Control

Worldwide Use

The ThingMagic Sargas Reader offers support for European, US regions, China, India and Japan allowing installations in various countries worldwide as needed by system integrators.

Features ThingMagic Sargas

  • RAIN (UHF - EPC Class1 Gen2, ISO 18000-63) Compliant
  • Two 50 Ohm antenna ports
  • Ethernet communication
  • Up to 30 dBm output power
  • GPIO 2 opto-isolated Inputs, 2 opto-isolated Outputs

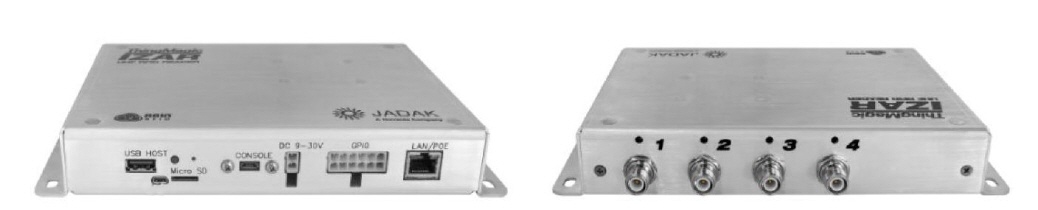

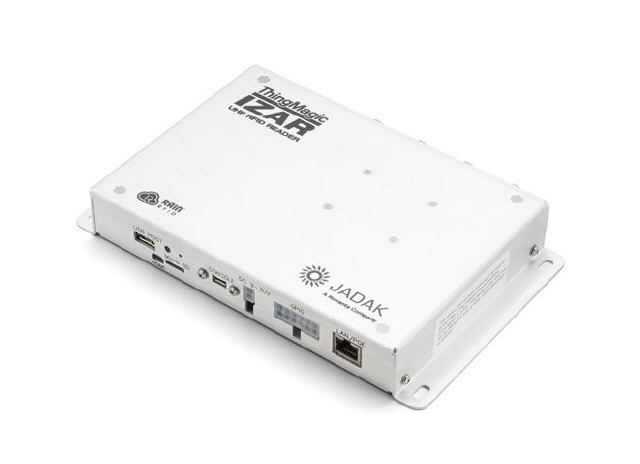

ThingMagic IZAR is a compact, programmable, 4-port RAIN UHF RFID network-attached reader with both read and write capability.

State-of-the-art performance of over 750 tag reads per second allows ThingMagic IZAR to be used in a wide variety of applications. Output power levels of up to +31.5 dBm and high receiver sensitivity permit longer read distances.

Powerful Processor

RFID RAIN Reader JADAK ThingMagic IZAR
RFID RAIN Reader JADAK ThingMagic IZAR

ThingMagic IZAR is embedded with a powerful ARM Cortex processor running the Linux Operating System (OS), and generous amounts of DDR and FLASH memory, allowing complex on-reader programs to be written with the aid of JADAK’s custom Mercury APl. For those who simply need a data stream over network or serial interfaces, JADAK offers the proprietary RAINstream® application.

RAINstream Compatible

All settings, including those for RAINstream, can be configured via a web interface sourced by the reader. This interface also permits the administrator to view status, upgrade firmware, run diagnostic tests, and test reading ability.

“Tagnostic”

ThingMagic IZAR supports the entire suite of RAIN UHF RFID tag functionality, including Gen2V2 security. It also supports custom features from a wide variety of tag vendors, enhancing functionality for specialized applications. Optional, non-RAIN tag protocols are also available, including ISO 18000-6B, and read-only support for IP-X and AEI ATA.

Common Language

Mercury API, ThingMagic’s universal programming interface, permits easy software portability across the entire ThingMagic product line – between finished readers and embdedded modules.

Multiple Data Interfaces

Control and data gathering connections to ThingMagic IZAR can be made over both LAN and client USB interfaces. Other interfaces can also be supported by adapters connected to the USB host interface, Bluetooth, and serial connections.

Typical Applications ThingMagic IZAR

  • Logistics
  • Supply Chain
  • Inventory
  • Warehouse
  • Portals
  • RFID Tunnels
  • Smart Shelves

Worldwide Use

The ThingMagic IZAR Reader offers support for European, US regions, China, India and Japan allowing installations in various countries worldwide as needed by retailers, forwarders, warehouses and other global organizations.

Features ThingMagic IZAR

  • RAIN (UHF - EPC Class1 Gen2, ISO 18000-63) Compliant
  • Four 50 Ohm antenna ports
  • Ethernet communication
  • Power over Ethernet PoE+
  • Up to 31.5 dBm (1.4 W) output power
  • USB host port
  • PoE+ or external power supply
  • GPIO 4 opto-isolated Inputs, 4 opto-isolated Outputs
